CPD20

4-wheel lithium electric forklift - AC induction motor and 80 V battery - 2 T

CPD20

4-wheel lithium electric forklift - AC induction motor and 80 V battery - 2 T

The CPD20 lithium electric forklift, with a capacity of 2,000 kg, combines a maintenance-free LiFePO₄ battery, a full charge in 2 to 3 hours, a long wheelbase for stability and optimized hydraulics for faster mast movements in daily operations.

more information

	Designation	Stock / EXW price per unit excl. VAT
	CPD20 4-wheel lithium electric forklift - AC induction motor and 80 V battery - 2 T The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.

DESCRIPTION

TECHNICAL CHARACTERISTICS

CPD20 – 2-tonne 4-wheel lithium electric forklift

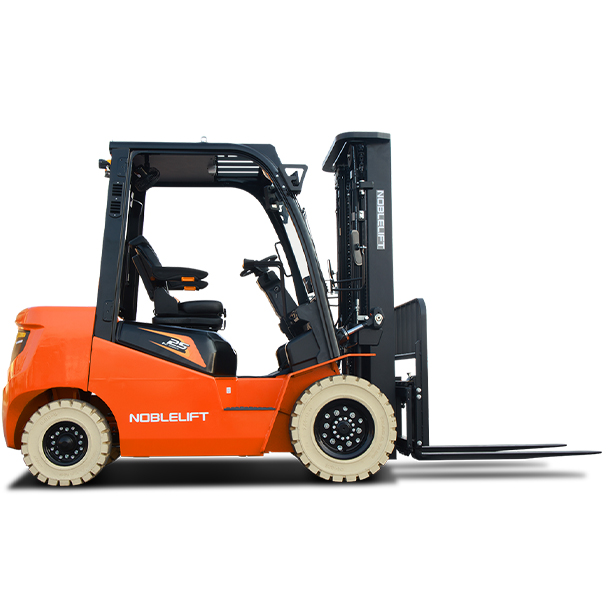

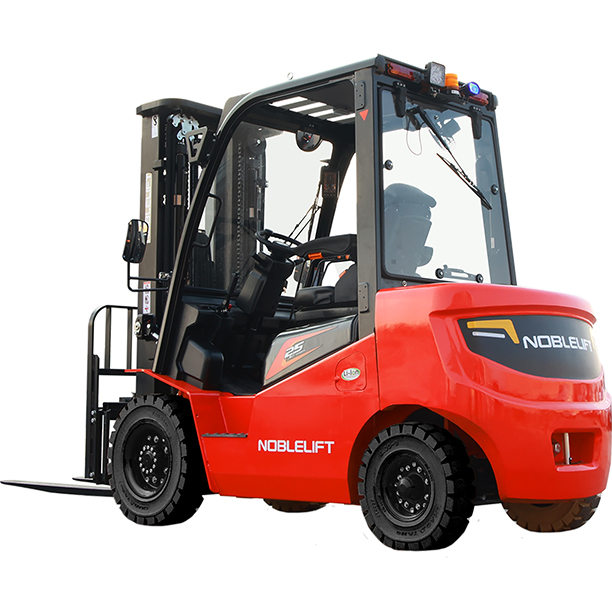

The NOBLELIFT FRANCE CPD20 is a sit-on lithium electric forklift with a rated capacity of 2,000 kg at a 500 mm load centre. Its four-wheel configuration, LiFePO₄ battery and optimised hydraulic system are suited to daily transfer, loading and stacking operations in warehouses, loading bays, workshops and stabilised logistics areas.

A versatile capacity for daily material flows

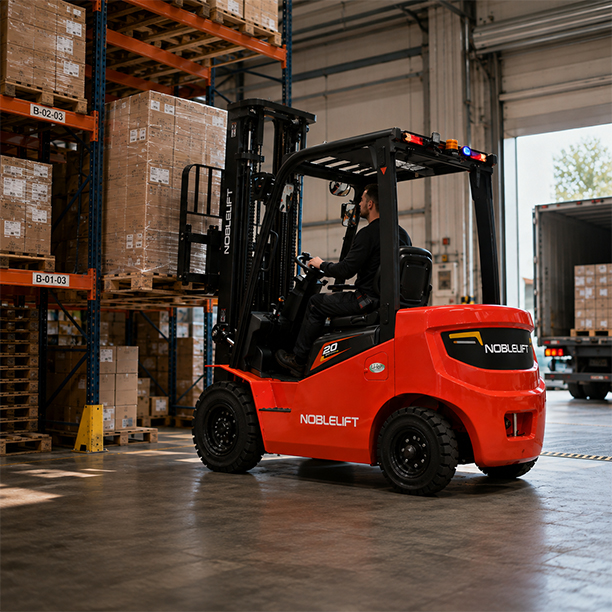

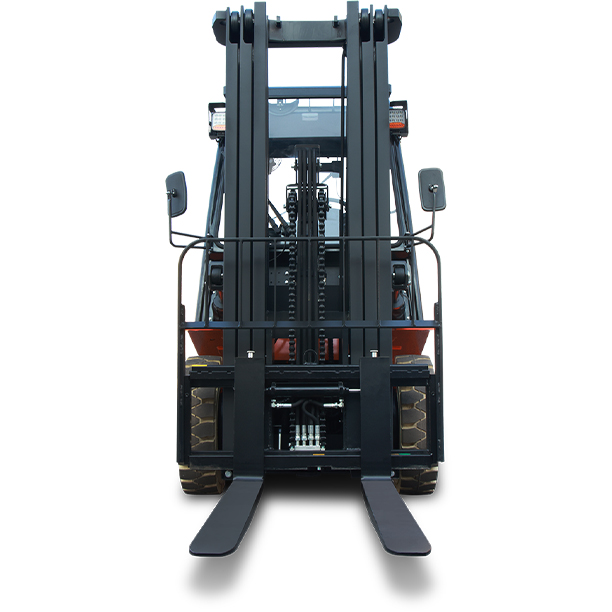

The CPD20 can handle movements between receiving, storage, production and dispatch. Its long wheelbase contributes to stability during load transport. Increased ground clearance facilitates travel on stabilised logistics surfaces with irregularities. The wide mast keeps the forks and load within the operator’s field of vision.

A LiFePO₄ battery for charging between work cycles

The 80 V / 175 Ah battery is equipped with a BMS, thermal monitoring and high-voltage regulation. The brochure specifies a full charging time of 2 to 3 hours. The battery can be charged during breaks or shift changes. This opportunity-charging capability supports work-cycle organisation without battery replacement. LiFePO₄ technology requires no periodic battery maintenance.

Comfort and precision during load handling

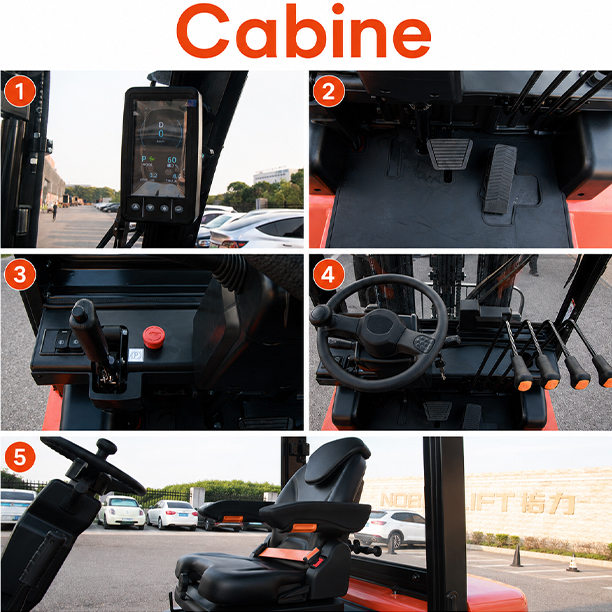

The spacious operator compartment, adjustable suspension seat and FHPS steering support repeated operation. Forward and reverse controls provide progressive transitions. The integrated side shift facilitates fork alignment. Lowering cushioning limits impacts on the load and floor.

Safety and visibility equipment

The OPS system prevents lifting and travel when the operator is not seated. LED lights, the blue warning light, panoramic mirrors, the horn integrated into the rear handle and the LCD screen improve information and visibility during manoeuvres.

Direct access for routine inspections

The gas-spring-assisted bonnet with integrated lock provides access to the forklift components. The air-filtration system limits dust ingress. Routine inspections should include the forks, mast, chains, tyres and safety devices.

Main technical specifications

• Rated capacity: 2,000 kg at a 500 mm load centre.
• Operating weight including battery: 3,250 kg.
• Wheelbase: 1,660 mm.
• Standard lift height: 3,000 mm.
• Mast height lowered / extended: 1,995 / 4,025 mm.
• Overall length: 3,698 mm.
• Overall width: 1,150 / 1,163 mm depending on configuration.
• Fork dimensions: 1,070 × 120 × 40 mm.
• Turning radius: 2,270 mm.
• Travel speed, laden / unladen: 18 / 19 km/h.
• LiFePO₄ battery: 80 V / 175 Ah.
• Traction motor / lift motor: 12 kW / 18 kW.
• Sound level at the operator’s ear: 72 dB.

Professional applications

• Transferring pallets between receiving and storage.
• Supplying production lines.
• Loading and unloading at loading bays.
• Stacking in warehouses.
• Moving goods on stabilised logistics areas.
• Daily handling with charging during breaks.

Frequently asked questions

What capacity does the CPD20 provide?
It can handle up to 2,000 kg at a 500 mm load centre.

How long does charging take?
The brochure specifies a full charging time of 2 to 3 hours.

Does the battery require periodic maintenance?
No. The LiFePO₄ battery is described as maintenance-free.

Which mast configurations are available?
Duplex, full-free-lift Duplex and full-free-lift Triplex masts are available.

To select the mast, attachments and charging organisation suited to your operation, contact NOBLELIFT FRANCE.
