CPCD35

Diesel internal combustion forklift - hydrodynamic transmission - 3.5 T at 500 mm load centre

CPCD35

Diesel internal combustion forklift - hydrodynamic transmission - 3.5 T at 500 mm load centre

The CPCD35 is a 3.5-tonne diesel forklift designed to lift and move heavy pallets on industrial sites. Its ground clearance, long wheelbase and ergonomic operator area support stable, controlled handling throughout routine daily operations.

more information

	Designation	Stock / EXW price per unit excl. VAT
	CPCD35 Diesel internal combustion forklift - hydrodynamic transmission - 3.5 T at 500 mm load centre The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.

DESCRIPTION

TECHNICAL CHARACTERISTICS

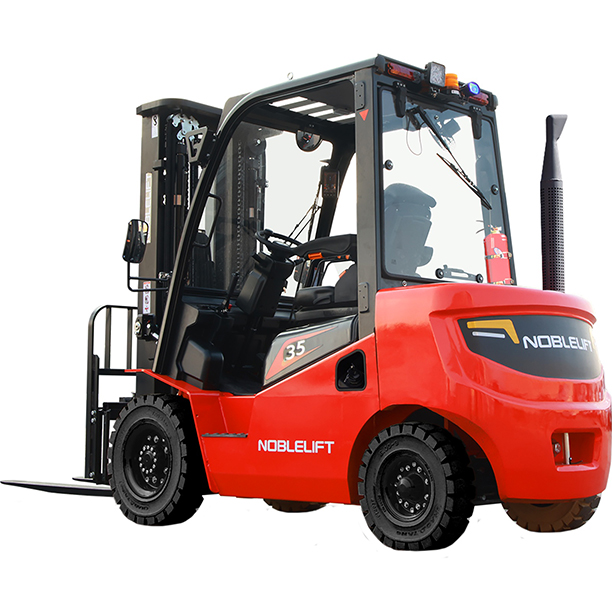

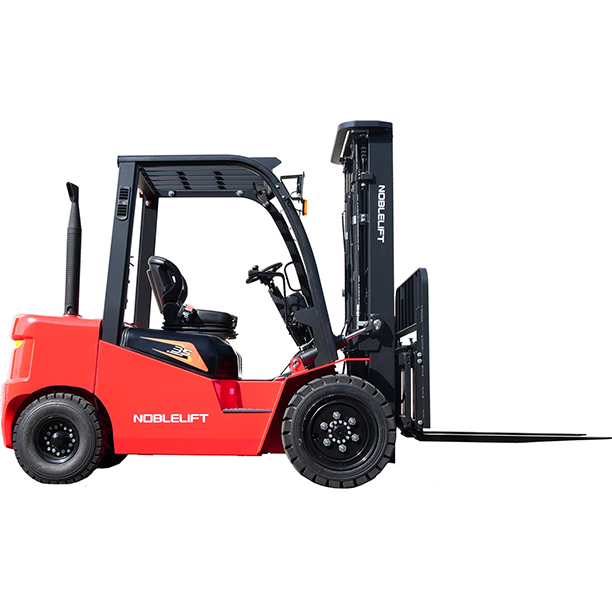

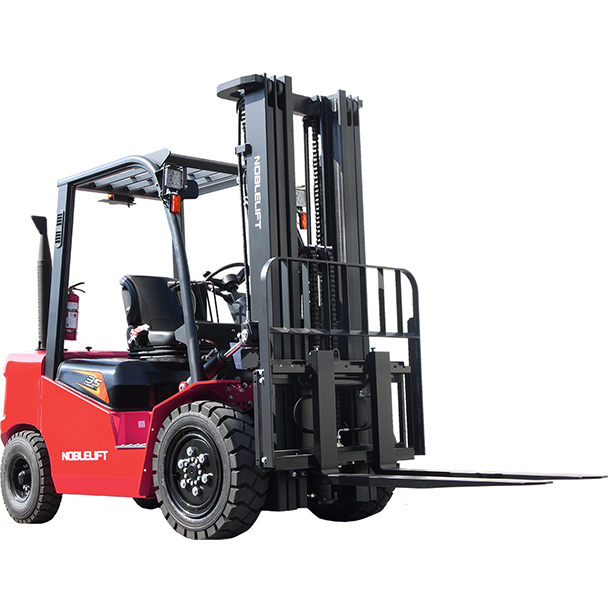

CPCD35 – 3.5-tonne diesel internal combustion forklift

The NOBLELIFT FRANCE CPCD35 is a sit-on diesel internal combustion forklift designed for industrial loads weighing up to 3,500 kg at a 500 mm load centre. It combines a 36.8 kW engine, hydrodynamic transmission, 70-litre fuel tank and a structure suited to outdoor or mixed operations.

A 3.5-tonne capacity for dense loads

The CPCD35 can handle raw materials, finished products and industrial pallets between storage, workshops, loading bays and production. The long wheelbase supports stability under load. Increased ground clearance facilitates travel on stabilised uneven ground.

Diesel engine and fuel autonomy

The four-cylinder engine delivers 36.8 kW from a displacement of 2,850 cm³. Maximum torque reaches 165 N·m at 1,600–1,800 rpm. The 70-litre fuel tank supports extended work periods. The hydrodynamic transmission provides regular forward-reverse changes.

Visibility and precision during load pick-up

The wide mast provides a clear field of vision. The integrated side shift facilitates fork alignment. The adjustable suspension seat and FHPS steering support repeated travel. Lowering cushioning protects the load during deposit.

Operator-presence control and signalling

The OPS system prevents lifting and travel when the operator leaves the seat. LED lights, the blue warning light, mirrors and the rear horn improve safety during manoeuvres.

Engine access for inspections

The gas-spring-assisted bonnet provides access to the engine and components. The filtration system limits dust ingress. Routine checks include fluid levels, forks, mast, chains, tyres and lighting equipment.

Main technical specifications

• Rated capacity: 3,500 kg at a 500 mm load centre.
• Operating weight: 4,560 kg.
• Wheelbase: 1,760 mm.

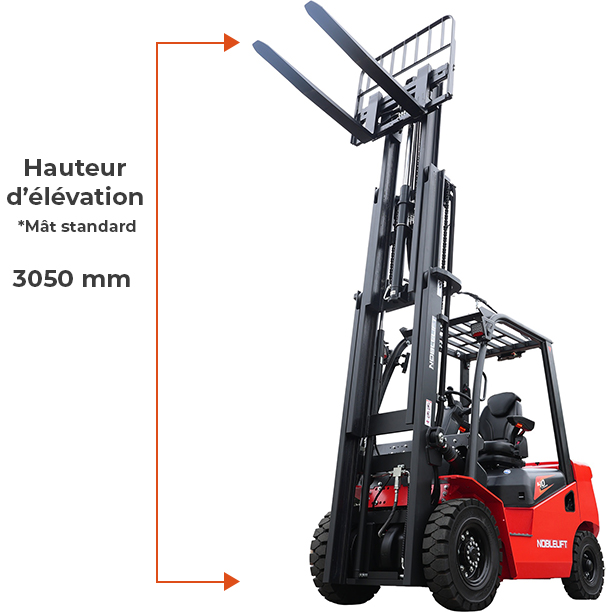

• Standard lift height: 3,000 mm.
• Mast height lowered / extended: 2,170 / 4,105 mm.
• Overall length: 3,905 mm.
• Overall width: 1,195 / 1,228 mm depending on configuration.
• Fork dimensions: 1,070 × 122 × 50 mm.
• Turning radius: 2,510 mm.
• Travel speed, laden / unladen: 19 / 20 km/h.
• Engine power: 36.8 kW.
• Fuel-tank capacity: 70 litres.
• Starter battery: 12 V / 80 Ah.

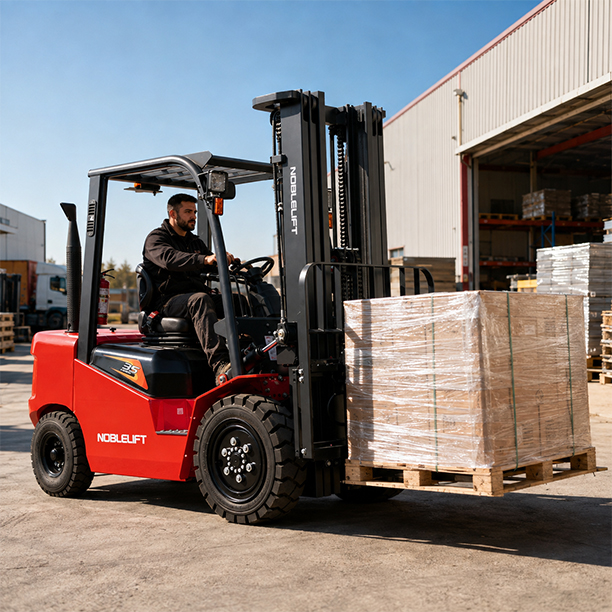

Professional applications

• Handling loads weighing up to 3,500 kg.
• Loading and unloading at loading bays.
• Supplying manufacturing workshops.
• Moving heavy finished products.
• Travelling on stabilised logistics yards.
• Transferring loads between production, storage and dispatch.

Frequently asked questions

What is the capacity of the CPCD35?
Its rated capacity is 3,500 kg at a 500 mm load centre.

What is the engine power?
The diesel engine delivers 36.8 kW.

What is the fuel-tank capacity?
The fuel tank holds 70 litres.

Which mast configurations are available?
The CPCD35 can be fitted with Duplex or Triplex masts according to the required height and residual capacity.

To validate the CPCD35 according to your loads and operating conditions, contact NOBLELIFT FRANCE.

Documentation

Data sheet
