CPCD30

Diesel internal combustion forklift - hydrodynamic transmission - 3 T at 500 mm load centre

CPCD30

Diesel internal combustion forklift - hydrodynamic transmission - 3 T at 500 mm load centre

The CPCD30 is a 3-tonne diesel forklift suited to loading, moving and placing pallets into storage. Its optimised hydraulic system and wide-view mast support precise, consistent manoeuvring during routine professional handling operations on site.

more information

	Designation	Stock / EXW price per unit excl. VAT
	CPCD30 Diesel internal combustion forklift - hydrodynamic transmission - 3 T at 500 mm load centre The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.

DESCRIPTION

TECHNICAL CHARACTERISTICS

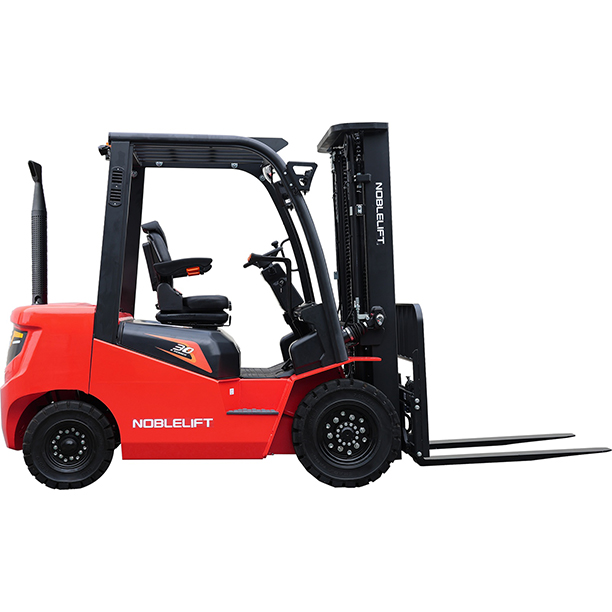

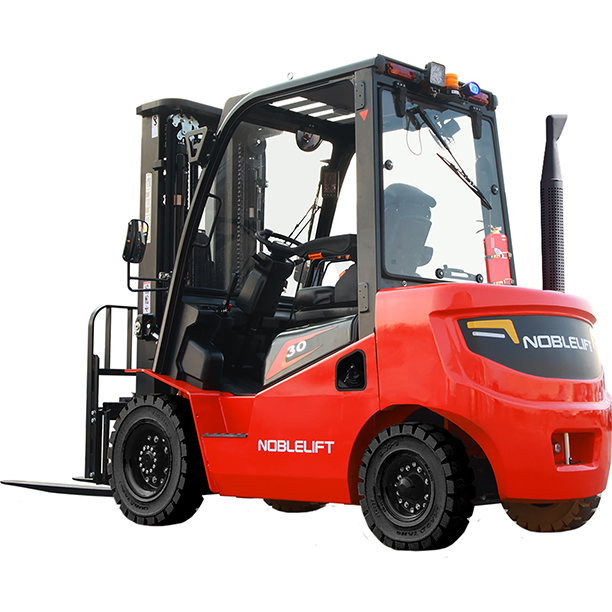

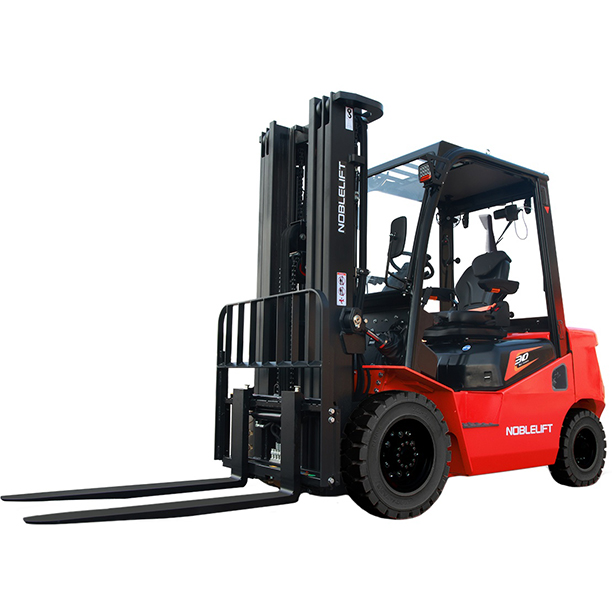

CPCD30 – 3-tonne diesel internal combustion forklift

The NOBLELIFT FRANCE CPCD30 is a sit-on diesel internal combustion forklift designed for handling operations up to 3,000 kg at a 500 mm load centre. Its 36.8 kW engine, hydrodynamic transmission and increased ground clearance meet the requirements of material flows between logistics yards, loading bays, workshops, production and storage.

Three tonnes for connecting storage and production

The CPCD30 is suited to moving raw materials, finished products and heavy pallets. The long wheelbase supports stability. The wide mast improves visibility of the forks. Lowering cushioning limits impacts during load deposit.

An engine suited to sustained operating schedules

The four-cylinder engine delivers 36.8 kW. Its displacement is 2,850 cm³ and maximum torque reaches 165 N·m at 1,600–1,800 rpm. The 70-litre fuel tank supports extended operating periods. The hydrodynamic transmission facilitates changes of direction.

Driving and pallet positioning

FHPS steering facilitates manoeuvring. The adjustable suspension seat limits vibration. The integrated side shift helps align the forks with pallets. Forward-reverse controls provide progressive transitions during load approach.

Safety around the forklift

The OPS system prevents lifting and travel when the operator is not seated. LED lights, the blue warning light, panoramic mirrors and the rear horn improve visibility. The LCD screen provides operating information to the driver.

Servicing and air filtration

The assisted bonnet opens to provide access to the engine. The filtration system limits dust ingress. Checks include fluid levels, forks, chains, mast, tyres, lighting and safety systems.

Main technical specifications

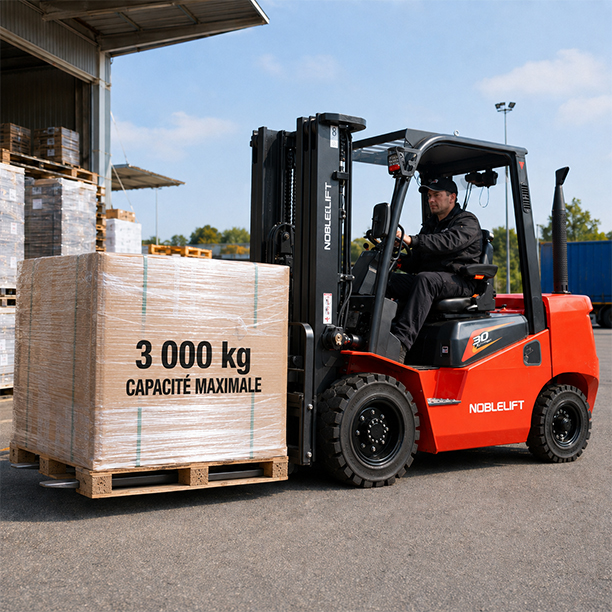

• Rated capacity: 3,000 kg at a 500 mm load centre.
• Operating weight: 4,250 kg.
• Wheelbase: 1,760 mm.

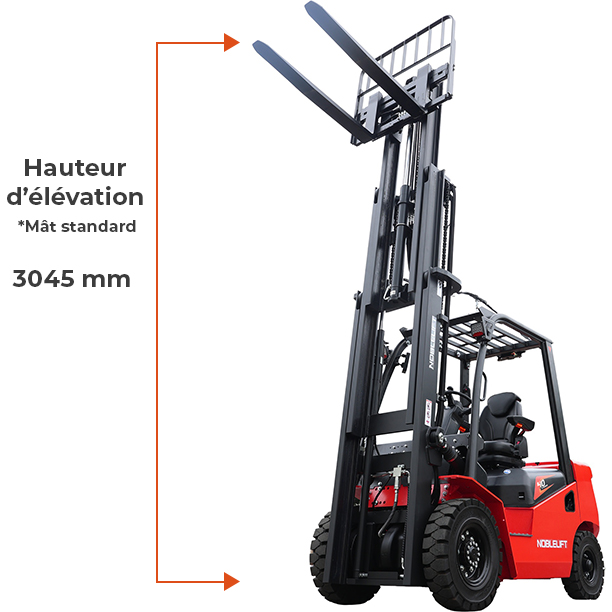

• Standard lift height: 3,000 mm.
• Mast height lowered / extended: 2,055 / 4,105 mm.
• Overall length: 3,840 mm.
• Overall width: 1,195 / 1,228 mm depending on configuration.
• Fork dimensions: 1,070 × 122 × 45 mm.
• Turning radius: 2,450 mm.
• Travel speed, laden / unladen: 19 / 20 km/h.
• Engine power: 36.8 kW.
• Fuel-tank capacity: 70 litres.
• Starter battery: 12 V / 80 Ah.

Professional applications

• Handling loads weighing up to 3,000 kg.
• Transferring raw materials between yards and workshops.
• Loading and unloading at loading bays.
• Supplying production lines.
• Travelling on stabilised outdoor areas.
• Moving heavy pallets on industrial sites.

Frequently asked questions

What is the rated capacity of the CPCD30?
Its rated capacity is 3,000 kg at a 500 mm load centre.

How much fuel can the tank hold?
The fuel tank has a capacity of 70 litres.

What is its turning radius?
The specified turning radius is 2,450 mm.

Can it operate inside a building?
Indoor operation must comply with ventilation requirements and the site’s safety rules.

To configure the CPCD30 according to your ground conditions, gradients and site heights, contact NOBLELIFT FRANCE.
