CPCD25

Diesel internal combustion forklift - hydrodynamic transmission - 2.5 T at 500 mm load centre

CPCD25

Diesel internal combustion forklift - hydrodynamic transmission - 2.5 T at 500 mm load centre

The CPCD25 is a 2.5-tonne diesel forklift designed to load, unload and transport pallets. Its long wheelbase, suspension seat and smooth forward/reverse controls enhance stability and operator comfort during routine daily handling operations.

more information

	Designation	Stock / EXW price per unit excl. VAT
	CPCD25 Diesel internal combustion forklift - hydrodynamic transmission - 2.5 T at 500 mm load centre The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.

DESCRIPTION

TECHNICAL CHARACTERISTICS

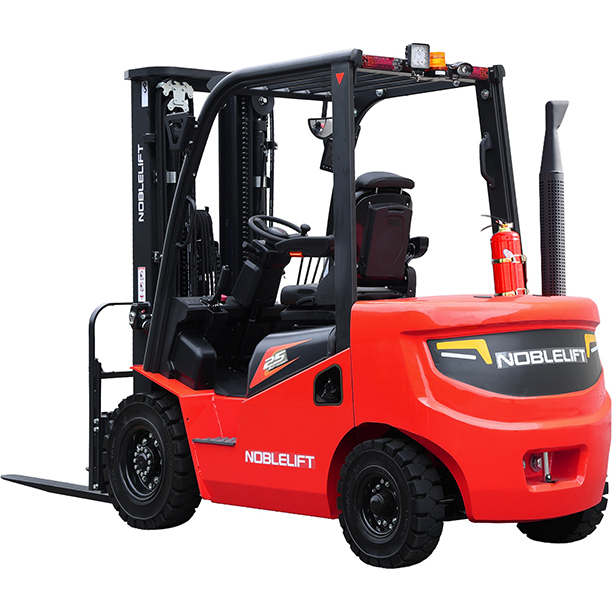

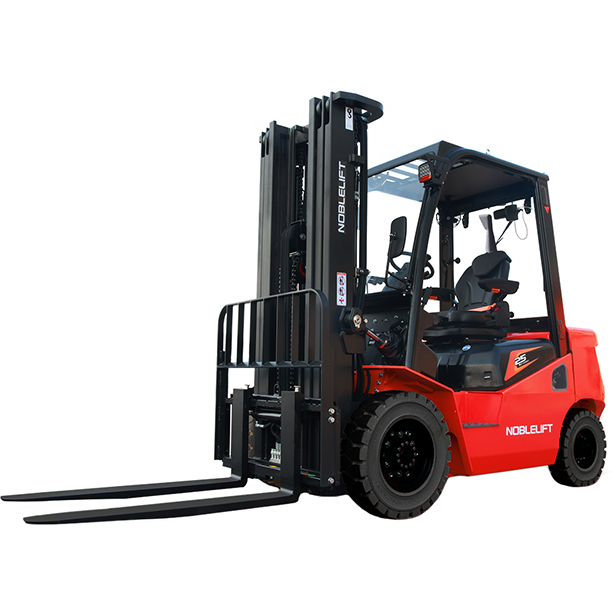

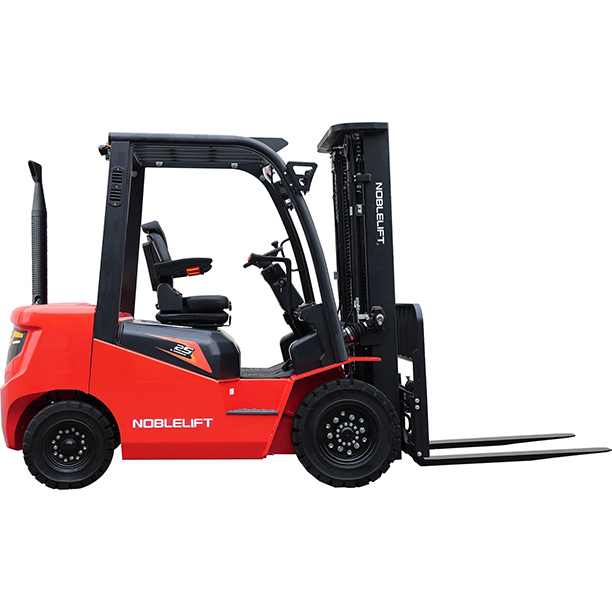

CPCD25 – 2.5-tonne diesel internal combustion forklift

The NOBLELIFT FRANCE CPCD25 is a sit-on diesel internal combustion forklift with a rated capacity of 2,500 kg at a 500 mm load centre. It meets the requirements of loading-bay flows, industrial transfers and outdoor handling operations requiring more capacity than a 2-tonne model.

A 2.5-tonne capacity for heavier pallets

The CPCD25 can handle dense industrial pallets between yards, loading bays, workshops and storage areas. The long wheelbase supports stability. Increased ground clearance facilitates travel on stabilised uneven areas. The wide mast provides a clear field of vision during load pick-up.

A 36.8 kW diesel engine and 60-litre fuel tank

The four-cylinder engine delivers 36.8 kW from a displacement of 2,850 cm³. Maximum torque reaches 165 N·m at 1,600–1,800 rpm. The 60-litre fuel tank supports extended work periods. The hydrodynamic transmission provides progressive direction changes.

Comfort during repeated travel

The operator compartment includes an adjustable suspension seat and FHPS steering. The integrated side shift helps correct the fork position. Lowering cushioning protects the floor and load. The OPS system prevents lifting and travel when the operator is not seated.

Visibility equipment

LED lights, the blue warning light, panoramic mirrors, the horn integrated into the rear handle and the LCD screen improve visibility in shared areas.

Engine access and filtration

The gas-spring-assisted bonnet provides direct access to the engine and components. The filtration system limits dust ingress. Routine servicing includes checks of fluid levels, forks, chains, mast, tyres and safety equipment.

Main technical specifications

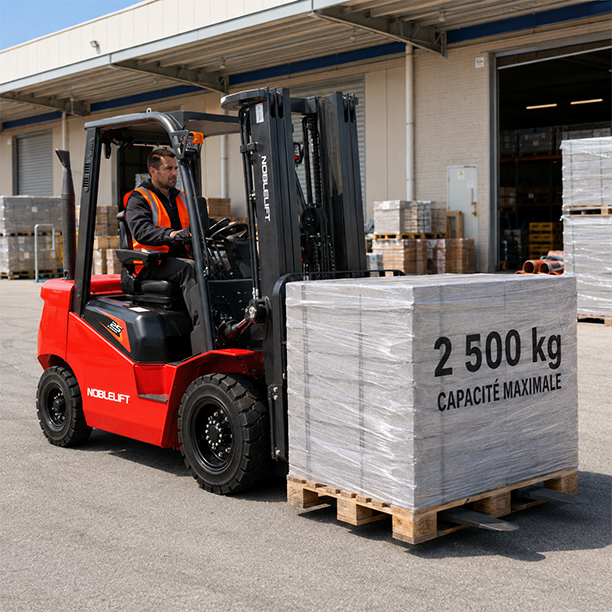

• Rated capacity: 2,500 kg at a 500 mm load centre.
• Operating weight: 3,800 kg.
• Wheelbase: 1,660 mm.

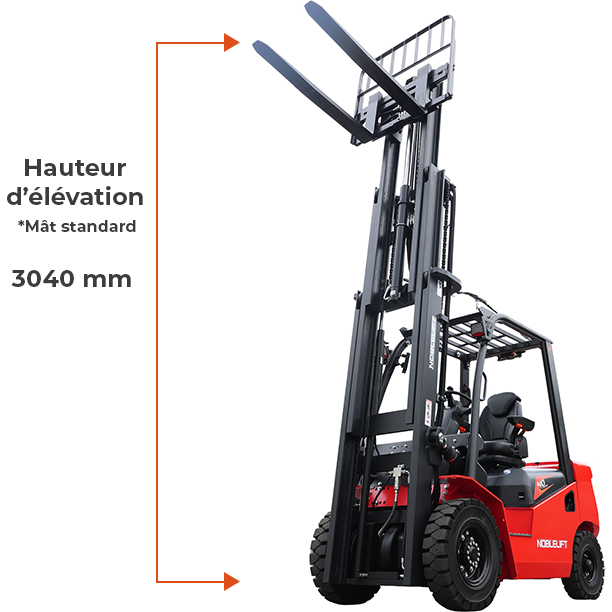

• Standard lift height: 3,000 mm.
• Mast height lowered / extended: 1,995 / 4,025 mm.
• Overall length: 3,698 mm.
• Overall width: 1,150 / 1,163 mm depending on configuration.
• Fork dimensions: 1,070 × 120 × 40 mm.
• Turning radius: 2,270 mm.
• Travel speed, laden / unladen: 18 / 18 km/h.
• Engine power: 36.8 kW.
• Fuel-tank capacity: 60 litres.
• Starter battery: 12 V / 80 Ah.

Professional applications

• Loading and unloading lorries.
• Transferring loads between yards and workshops.
• Supplying production lines.
• Handling pallets weighing up to 2,500 kg.
• Travelling on stabilised uneven ground.
• Outdoor or mixed operation on industrial sites.

Frequently asked questions

What rated capacity does the CPCD25 provide?
It can handle up to 2,500 kg at a 500 mm load centre.

Which engine is fitted to this model?
The four-cylinder diesel engine delivers 36.8 kW.

What is the fuel-tank capacity?
The fuel tank holds 60 litres.

Can the mast be configured?
Yes. Several Duplex and Triplex masts are available according to storage height.

To select the CPCD25 according to your material flows and outdoor conditions, contact NOBLELIFT FRANCE.

Documentation

Data sheet
