CPD50

4-wheel lithium electric forklift - permanent magnet and 154 V battery - 5 T

CPD50

4-wheel lithium electric forklift - permanent magnet and 154 V battery - 5 T

The CPD50 lithium electric forklift, with a capacity of 5,000 kg, features a maintenance-free LiFePO₄ battery rechargeable in 2 to 3 hours, a 2,100 mm wheelbase for stability, a 29 kW traction motor and a 34 kW lift motor for demanding operations.

more information

	Designation	Stock / EXW price per unit excl. VAT
	CPD50 4-wheel lithium electric forklift - permanent magnet and 154 V battery - 5 T The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.

DESCRIPTION

TECHNICAL CHARACTERISTICS

CPD50 – 5-tonne 4-wheel lithium electric forklift

The NOBLELIFT FRANCE CPD50 is a sit-on lithium electric forklift designed to handle up to 5,000 kg at a 500 mm load centre. It supports high-capacity operations with electric drive, a 154 V LiFePO₄ battery and permanent-magnet AC traction.

Five electric tonnes for the heaviest loads

The CPD50 is intended for industrial sites, storage platforms and workshops moving very heavy pallets, equipment and components. Its 2,100 mm wheelbase contributes to stability. The wide mast allows visual monitoring of the forks during pick-up, travel and deposit.

A lithium battery suited to industrial operating schedules

The 154 V / 280 Ah LiFePO₄ battery can be charged during work interruptions. A full charging time of 2 to 3 hours is specified. The BMS monitors charging and discharging. This technology requires neither periodic maintenance nor battery replacement between work cycles.

Traction and lifting power

The 29 kW traction motor uses permanent-magnet AC control. The lift motor delivers 34 kW. Lift speed reaches 410 mm/s when laden and 500 mm/s when unladen. The hydraulic system supports repeated heavy-duty handling cycles.

Ergonomics and safety equipment

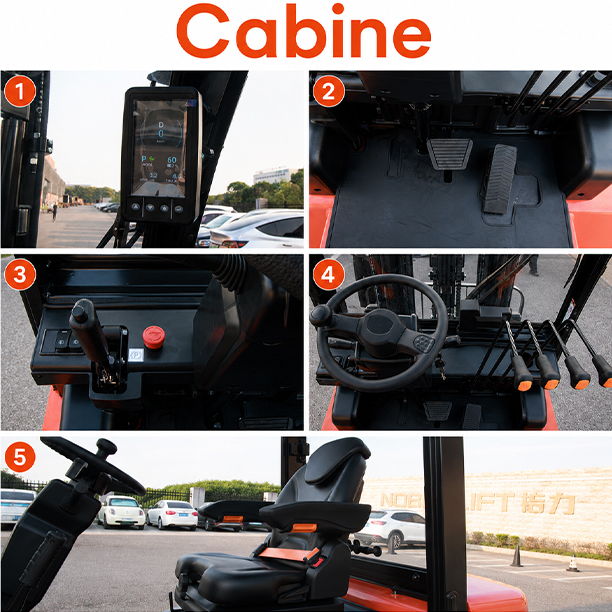

The operator compartment includes an adjustable suspension seat and FHPS steering. The integrated side shift facilitates fork alignment. The OPS system prevents travel and lifting when the operator is not seated. LED lights, the blue warning light, panoramic mirrors and the rear horn improve forklift visibility.

Components accessible to technical teams

The assisted bonnet provides access to the components for routine inspections. The filter limits dust ingress. Checks include the forks, mast, chains, tyres, brakes and safety devices.

Main technical specifications

• Rated capacity: 5,000 kg at a 500 mm load centre.
• Operating weight including battery: 6,900 kg.
• Wheelbase: 2,100 mm.
• Standard lift height: 3,000 mm.
• Mast height lowered / extended: 2,250 / 4,300 mm.
• Overall length: 4,605 mm.
• Overall width: 1,480 / 1,490 mm depending on configuration.
• Fork dimensions: 1,370 × 150 × 50 mm.
• Turning radius: 2,930 mm.
• Travel speed, laden / unladen: 18 / 19 km/h.
• LiFePO₄ battery: 154 V / 280 Ah.
• Traction motor / lift motor: 29 kW / 34 kW.
• Sound level at the operator’s ear: 74 dB.

Professional applications

• Handling loads weighing up to 5,000 kg.
• Moving heavy industrial equipment.
• Supplying production sites.
• Loading materials and dense pallets.
• Transferring loads between storage and dispatch.
• Heavy-duty operation with opportunity charging.

Frequently asked questions

What is the rated capacity of the CPD50?
The CPD50 can handle up to 5,000 kg at a 500 mm load centre.

Can it replace a diesel forklift for certain applications?
It provides electric handling capacity of up to 5 tonnes in environments compatible with its dimensions and operating conditions.

Which battery does it use?
It is equipped with a 154 V / 280 Ah LiFePO₄ battery.

Which parameters must be validated before selection?
The actual load, its centre of gravity, lift height, residual capacity, ground conditions and attachments must be assessed.

To size the CPD50 according to your loads and operating conditions, contact NOBLELIFT FRANCE.

Documentation

Data sheet
