CPD30

4-wheel lithium electric forklift - AC induction motor and 80 V battery - 3 T

The CPD30 lithium electric forklift, with a capacity of 3,000 kg, combines a maintenance-free LiFePO₄ battery, a full charge in 2 to 3 hours, a long wheelbase for stability and optimized hydraulics for faster mast movements in daily operations.

more information
Designation Stock / EXW price per unit excl. VAT
CPD30
4-wheel lithium electric forklift - AC induction motor and 80 V battery - 3 T

The configurations available for this model will appear below. If no configuration is available in stock, you can use the configurator and send us your request by email.
DESCRIPTION
TECHNICAL CHARACTERISTICS

  • CPD30 – 3-tonne 4-wheel lithium electric forklift

    The NOBLELIFT FRANCE CPD30 is a sit-on lithium electric forklift with a rated capacity of 3,000 kg at a 500 mm load centre. It is intended for regular industrial material flows between production, storage, receiving and dispatch. Its 80 V / 205 Ah LiFePO₄ battery and four-wheel configuration support applications requiring a 3-tonne capacity without using a diesel engine.

    Three tonnes for regular industrial flows

    The CPD30 can operate in warehouses, workshops, loading bays and stabilised logistics yards. The long wheelbase contributes to stability during load transport. Increased ground clearance supports travel on logistics surfaces with irregularities. The wide mast provides a direct view of the forks.

    A lithium battery for continuous work-cycle organisation

    The 80 V / 205 Ah LiFePO₄ battery is equipped with a BMS, thermal monitoring and high-voltage regulation. A full charging time of 2 to 3 hours is specified. Charging can take place during breaks or shift changes to maintain forklift availability without battery replacement.

    Driving, positioning and safety

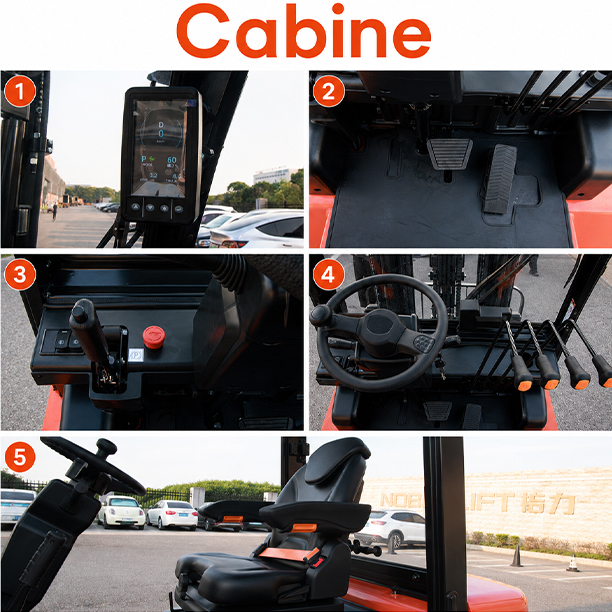

    The operator compartment includes a spacious working area, an adjustable suspension seat and FHPS steering. Forward and reverse controls provide progressive transitions. The integrated side shift helps position the forks accurately. The OPS system prevents lifting and travel when the operator’s seat is unoccupied.

    Improved visibility in shared areas

    LED lights, the blue warning light, panoramic mirrors, the LCD screen and the horn on the rear handle support manoeuvring. Lowering cushioning limits impact on the floor and load during deposit.

    Routine servicing and a maintenance-free battery

    The gas-spring-assisted bonnet provides direct access to the components. The air-filtration system limits dust ingress. The LiFePO₄ battery requires neither topping-up nor periodic maintenance. The forks, mast, chains, tyres and safety systems must nevertheless be inspected regularly.

    Main technical specifications

    • Rated capacity: 3,000 kg at a 500 mm load centre.
    • Operating weight including battery: 4,100 kg.
    • Wheelbase: 1,760 mm.
    • Standard lift height: 3,000 mm.
    • Mast height lowered / extended: 2,055 / 4,105 mm.
    • Overall length: 3,840 mm.
    • Overall width: 1,195 / 1,228 mm depending on configuration.
    • Fork dimensions: 1,070 × 122 × 45 mm.
    • Turning radius: 2,450 mm.
    • Travel speed, laden / unladen: 15 / 15 km/h.
    • LiFePO₄ battery: 80 V / 205 Ah.
    • Traction motor / lift motor: 12 kW / 18 kW.
    • Sound level at the operator’s ear: 73 dB.

    Professional applications

    • Transferring loads weighing up to 3,000 kg.
    • Supplying manufacturing lines.
    • Moving raw materials and finished products.
    • Loading and unloading at loading bays.
    • Stacking in industrial warehouses.
    • Operation with opportunity charging during breaks.

    Frequently asked questions

    What load can the CPD30 lift?
    Its rated capacity is 3,000 kg at a 500 mm load centre.

    What is the battery capacity?
    The LiFePO₄ battery has a voltage of 80 V and a capacity of 205 Ah.

    Which equipment improves safety?
    The forklift includes an OPS system, LED lights, a blue warning light, mirrors and a rear horn.

    Can the lift height be configured?
    Yes. Several Duplex and Triplex masts are available with different residual capacities.

    To build a CPD30 configuration suited to your loads and circulation constraints, contact NOBLELIFT FRANCE.
